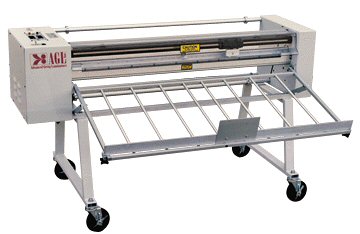

AUTO TRIM II
- Flush Trim All Films
- Accuracy Repeatable to .001"
- Easy Operator Interface and Set-Up
- Operating Speed: Trimmer at 0-100fpm;
Sheeter at 1-150fpm
- Self Sharpening Rotary Blade for Clean Cuts
- Automatically Adjusts Speed to Follow Laminator
- Sealed Edge Trim and Bleed Trim with Unlimited Margins
- Four Web Widths Available: 28, 39, 51, and
64"
- Leading and Trailing Margins Individually Adjustable to
99.999"
- Custom Built Photo Optics Capable of Penetrating Opaque
Materials
|
- Flat Feed: For Heavy Films and High Speed Applications
- Graphics: For Continuous Web Formats, Cut by Registration
marks.
- Multi-Cut: Allows Numerous Cuts for Converting Printed
Sheets that Contain More than One Print
|
| Max. Web
Width |
Dimensions |
|
28" |
Height
16.25", Depth 18.25", Width 51", Weight 160 lbs. |
|
39" |
Height
16.25", Depth 18.25", Width 62", Weight 175lbs. |
|
51" |
Height
16.25", Depth 18.25", Width 74", Weight 215lbs. |
|
64" |
Height
16.25", Depth 18.25", Width 87", Weight 270 lbs. |
|
Electrical: Control Voltage 115vac, 50-60hz
|
|
Pneumatic Requirements 5-10cfm at 100 psi |
For Prices and Ordering:
We have moved the prices to our new shopping cart shown here.
Price: Flat
feed and multi cut, plus
floor stand, with 4 swivel
locking casters.
|
Optional Equipment |
| Continuous
web graphics (mark register control) |
|
Revised
May, 2009
Warranty 90 days from
delivery
Terms and Conditions:
Delivery: Stock to 6 weeks
Terms: 50% down prior to shipment, balance 30 days.
Visa, Master Card and American Express Credit cards accepted
Freight : FOB ship point
