Neolt Trimmers

• What will it cut.

• Application Guide for All Neolt Trimmers.

• Warranty Information

Desk Trimmers

Desk Trimmers
These lightweight "office environment" trimmers feature the same rolling blade technology employed in the more robust segment of the Neolt line. Rolling blades are mounted on a chrome plated guide rail. The result is a trimming system that gives a smooth, clean cut on a wide variety of materials. A transparent clamp strip holds material firmly and automatically lifts when cutting head has completed a pass. Metal baseboards are calibrated in both inch and metric equivalents. Desk Trim (Manual) Table top unit. Reference brackets are included.

 Neolt Rotary-Action Trimmers

Neolt rotary-action trimmers are designed for fast, accurate trimming of all types of drawing, plotter, and laminating media. Whether choosing a tabletop or floor model, manual or electric, "Trim" or "Max," you are sure to find one of these professional-quality trimmers to be the perfect companion to your plotter, printer or laminator. Excellent for use in reprographic departments, copy centers and engineering offices. Outstanding for trimming laminated digital paper output in standard or large format.

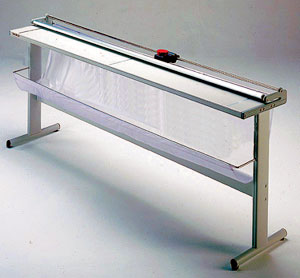

"TRIM" Manual Roll Blade Trimmers

Neolt manual trimmers have set the standards of quality, function and value. All Models feature self-sharpening cutting wheels and bi-directional cutting. The cutting head rides effortlessly on Delrin-coated roller bearings and the top-mounted swivel handle ensures operator comfort. The cutting head can be raised or lowered from any position on the bar and a unique shoulder design enables cutting of material that is longer than the trimmer itself. The transparent clamp strip holds material firmly and lifts automatically when cutting head reaches either end. Metal and metric increments. Available as table top trimmers or with a sturdy steel stand and waste catcher.

Manual Rolling Blade Trimmers
Designed for a variety of trimming applications, all Neolt Manual Rolling Blade Trimmers feature self-sharpening, hardened steel rolling blades matched with stainless steel flat blades. Rolling blades are mounted on a ball bearing transport system that is in turn mounted on a chrome plated guide rail. The result is a trimming system that gives a smooth, clean cut on a wide variety of materials. A transparent clamp strip holds material firmly and automatically lifts when cutting head has completed a pass. Metal baseboards are calibrated in both inch and metric equivalents. All models are supplied with stand and convenient waste catching basket. Height of working surface is 34.25 inches.

Light Duty Cutters

Trim manual series is essentially for single-sheet trimming.

Manual, light duty paper cutter specifically designed for the single sheet environment. Cutter head is mounted on a round chrome guide rail. Head cuts in both directions at sixty inches per second. The unique design of the end frames on the trimmer permits the cutting of materials longer than the trimmer itself. Price includes stand.
Click here for Roll Holder option price.

Replacement blades (All manual trimmers use the same blades and assemblies).
Other parts available on request.

.    For Prices and Ordering:
We have moved the prices to our new shopping cart shown here.

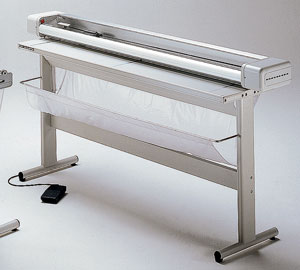

Electro Trim (Electric)


A light duty electric paper cutter specifically designed for the single sheet environment. Cutter head is mounted on a round chrome guide rail with ball bearings. The trimmer head cuts in both directions at sixty inches per second. Either the convenient "touch bar actuator" or foot pedal can be used to initiate each trim. Fixing bar is a factory installed option. Includes lamp and stand.

Electric Rolling Blade Trimmers
Designed for "heavy use" applications, all Neolt Rolling Blade Electric Trimmers feature self-sharpening, hardened steel rolling blades matched with stainless steel flat blades. Rolling blades are mounted on a ball bearing transport system that is in turn mounted on a chrome plated guide rail. The result is a trimming system that gives a smooth, clean cut on a wide variety of materials. Trimmer heads are protected at all times by a unique, clear plastic shield. Florescent tube lighting illuminates the full length of the cutting area. A transparent clamp strip holds material firmly and automatically lifts when cutting head has completed a pass. Metal baseboards are calibrated in both inch and metric equivalents; height of the working surface is 34.25 inches. Positive belt drives power trimmer heads through the cutting zone at a constant speed. All models are supplied with stand and convenient waste catching basket.
Click here for Roll Holder option price.

Replacement blades (All electro trimmers use the same blades and assemblies).
Other parts available on request.

For Prices and Ordering:
We have moved the prices to our new shopping cart shown here.

Medium Duty Cutters


Medium duty paper cutting system, features a reinforced cutter head mounted on a reinforced square chrome plated guide rail. Trimmer design facilitates horizontal output of trim edge for hand pickup or receiving table delivery. The unique design of the trimmer end frames permit the cutting of materials longer than the trimmer itself. Cutter is shipped with one adjustable reference guide. Includes Stand and Containment Brackets.
Click here for Roll Holder option price.

Manual Rolling Blade Trimmers
Designed for a variety of trimming applications, all Neolt Manual Rolling Blade Trimmers feature self-sharpening, hardened steel rolling blades matched with stainless steel flat blades. Rolling blades are mounted on a ball bearing transport system that is in turn mounted on a chrome plated guide rail. The result is a trimming system that gives a smooth, clean cut on a wide variety of materials. A transparent clamp strip holds material firmly and automatically lifts when cutting head has completed a pass. Metal baseboards are calibrated in both inch and metric equivalents. All models are supplied with stand and convenient waste catching basket. Height of working surface is 34.25 inches.

For Prices and Ordering:
We have moved the prices to our new shopping cart shown here.

Electro Power Trim ( Open ended cutter)
The open ended cutter allows you to cut material longer than the trimmer, by  making a cut on one end, then sliding it down and making another cut on the opposite end.



This high-speed, medium duty workhorse of a paper cutter, features a reinforced cutting head mounted on a square chrome plated guide rail with ball bearings. Cutting head cuts in both directions at twenty inches per second. Trimmer design facilitates horizontal output of trim edge for hand pickup or receiving table delivery. Engineering of the end frames permits the cutting of materials longer than the trimmer itself. Paper cutter is shipped with an adjustable reference guide. Either the convenient "touch bar actuator or foot pedal can be used to initiate each trim.
Includes Stand, Lamp, Fixing Bar and Containment Brackets
Click here for Roll Holder option price.

Electric Rolling Blade Trimmers
Designed for "heavy use" applications, all Neolt Rolling Blade Electric Trimmers feature self-sharpening, hardened steel rolling blades matched with stainless steel flat blades. Rolling blades are mounted on a ball bearing transport system that is in turn mounted on a chrome plated guide rail. The result is a trimming system that gives a smooth, clean cut on a wide variety of materials. Trimmer heads are protected at all times by a unique, clear plastic shield. Florescent tube lighting illuminates the full length of the cutting area. A transparent clamp strip holds material firmly and automatically lifts when cutting head has completed a pass. Metal baseboards are calibrated in both inch and metric equivalents; height of the working surface is 34.25 inches. Positive belt drives power trimmer heads through the cutting zone at a constant speed. All models are supplied with stand and convenient waste catching basket.


300 and 360 price includes fixing bar

For Prices and Ordering:
We have moved the prices to our new shopping cart shown here.

    Parts listing

Heavy Duty Cutters

Strong Trim (Manual)


Heavy-duty, manual paper cutter features reinforced cutter head mounted on rectangular chrome plated guide rail. Design of trimmer permits horizontal output of trim edge for hand pickup or receiving table for delivery. Unit is shipped with two adjustable reference guides.  Includes Stand, Fixing Bar and Containment Brackets.
Click here for Roll Holder option price.

Manual Rolling Blade Trimmers
Designed for a variety of trimming applications, all Neolt Manual Rolling Blade Trimmers feature self-sharpening, hardened steel rolling blades matched with stainless steel flat blades. Rolling blades are mounted on a ball bearing transport system that is in turn mounted on a chrome plated guide rail. The result is a trimming system that gives a smooth, clean cut on a wide variety of materials. A transparent clamp strip holds material firmly and automatically lifts when cutting head has completed a pass. Metal baseboards are calibrated in both inch and metric equivalents. All models are supplied with stand and convenient waste catching basket. Height of working surface is 34.25 inches.


Electro Strong Trim (Electric)



This heavy-duty standard of the industry features a reinforced cutting head mounted on a rectangular chrome plated guide rail with ball bearings. The cutting head of this electric paper cutter cuts in one direction (right to left) and automatically returns to its "home position" at the end of each cut. Head speed is sixteen inches per second. Design of the electric trimmer permits horizontal output of trim edge for hand pickup or delivery to a receiving table. Unit is shipped with two adjustable reference guides. Convenient "foot actuator" initiates each trim.
Includes Stand, Lamp, Containment Bracket and Fixing Bar.
Click here for Roll Holder option price.

Electric Rolling Blade Trimmers
Designed for "heavy use" applications, all Neolt Rolling Blade Electric Trimmers feature self-sharpening, hardened steel rolling blades matched with stainless steel flat blades. Rolling blades are mounted on a ball bearing transport system that is in turn mounted on a chrome plated guide rail. The result is a trimming system that gives a smooth, clean cut on a wide variety of materials. Trimmer heads are protected at all times by a unique, clear plastic shield. Florescent tube lighting illuminates the full length of the cutting area. A transparent clamp strip holds material firmly and automatically lifts when cutting head has completed a pass. Metal baseboards are calibrated in both inch and metric equivalents; height of the working surface is 34.25 inches. Positive belt drives power trimmer heads through the cutting zone at a constant speed. All models are supplied with stand and convenient waste catching basket.

Neolt Electric trimmers combine the outstanding qualities of the manual trimmers with a dependable electric drive. Designed for high volume use and operator comfort, these electric trimmers come complete with floor stand, waste catcher and under-mounted fluorescent lamp for illuminating the cutting edge. Bi-directional cut is easily activated by depressing either the foot pedal or the switch bar which runs the length of the trimmer. Cutting head is protected by a transparent Plexiglas screen and the head speed is approx. 40" per second.

Application Notes

Manual Rolling Blade Trimmers

Designed for a variety of trimming applications, all Neolt Manual Rolling Blade Trimmers feature self-sharpening, hardened steel rolling blades matched with stainless steel flat blades. Rolling blades are mounted on a ball bearing transport system that is in turn mounted on a chrome plated guide rail. The result is a trimming system that gives a smooth, clean cut on a wide variety of materials. A transparent clamp strip holds material firmly and automatically lifts when cutting head has completed a pass. Metal baseboards are calibrated in both inch and metric equivalents. All models are supplied with stand and convenient waste catching basket. Height of working surface is 34.25 inches.

Electric Rolling Blade Trimmers

Designed for "heavy use" applications, all Neolt Rolling Blade Electric Trimmers feature self-sharpening, hardened steel rolling blades matched with stainless steel flat blades. Rolling blades are mounted on a ball bearing transport system that is in turn mounted on a chrome plated guide rail. The result is a trimming system that gives a smooth, clean cut on a wide variety of materials. Trimmer heads are protected at all times by a unique, clear plastic shield. Florescent tube lighting illuminates the full length of the cutting area. A transparent clamp strip holds material firmly and automatically lifts when cutting head has completed a pass. Metal baseboards are calibrated in both inch and metric equivalents; height of the working surface is 34.25
inches. Positive belt drives power trimmer heads through the cutting zone at a constant speed. All models are supplied with stand and convenient waste catching basket.
Click here for Roll Holder option price.

Fixing Bar and Roll Holders, Fluorescent Lamps
When ordering use the model number of the cutter for proper size.

 Fixing Bar for Electro Power Trim

What is a fixing bar?
The fixing bar holds down the media. You manually clamp it down on both ends and there is no movement on the product being cut. It is generally used when cutting thicker material or material that is long. When cutting thicker material the blade can cause the media to skew slightly upon initial impact.

Foam Trimmers

Neolt foam board trimmers are available in a wide variety of sizes and models to satisfy the needs of many users. Whether choosing a tabletop or floor model, manual or electric, these professional-quality trimmers feature all metal, solid construction for years of continuous use. The straight blade design cuts cleanly through foam board products of various thickness without crushing or tearing. The head rides on smooth-action roller bearings and includes a mechanism to lock it in place as well as a comfortable pull handle for ease of use. Each Foam trimmer comes with a set of 5 straight blades and is covered by a 1 year warranty.

With manual foam trim you can cut: Gater Board, Foam board and Corplast to maximum thickness of 1/2 inch.

Light Foam Trim with Fixing Bar

Economical Manual Foam Trimmer with a fixed blade cutting head. Hardened steel cutting head is precisely aligned by aluminum guide rail. System includes reference bracket and fixing bar for stabilizing material being cut. The Light Foam Trim will cut standard foam board up to .59 inches (15mm) or ridged foam board up to .12 inches (3mm.)
Options include a stand. Working surface height with stand is 35.8 inches.

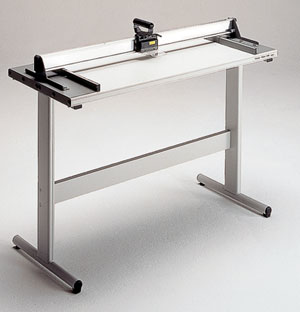

Foam Trim Horizontal (Manual) with Fixing Bar



Foam Trim Plus, Horizontal (Manual) with Fixing Bar, Stand

A Robust Manual Foam Trimmer with fixed blade-cutting head. System will cut standard foam board up to .5 inches thick. Trimmer comes with two hardened steel cutting heads (10mm and 30mm) which are precisely aligned by an aluminum guide rail. The system is equipped with a fixing bar (for stabilizing material being cut.) An optional "Laser Designator" is available. The "Laser Designator" generates a florescent red "cut line," designating precisely where the cutter blade will cut. The system comes with a stand, creating a work surface height of 35.8 inches.
Also available with angular cutting kit on the FT 160 only.

Foam Trim Pro with Fixing Bar and Stand ( Special Order Only)

Foam Trim Pro, Horizontal (Manual)

The Foam Trim Pro is the Big Gun� in Manual Foam Trimmers. The hardened steel cutter head features an incrementally adjustable blade, facilitating cuts of from 10mm to 30mm. An aluminum
guide rail precisely aligns the cutter head. A crank wheel operates the systems fixing bar which
when engaged stabilizes the substrate being cut. An optional Laser Designator is available. The Laser Designator generates a florescent red cut line, designating precisely where the cutter blade will cut.
The system comes with a stand, creating a work surface height of 35.8 inches.

This is a special order unit check with us for lead times.

Vertical Foam Trim (Manual)

Fixed blade cutting head is constructed from hardened steel, precisely aligned by a precision aluminum guide rail. Foam trimmer is supplied with both 10mm and 30mm cutting heads. Fixing bar adjusts to height of substrate, stabilizing the sheet for clean crisp cuts. Left and right lateral extensions as well as adjustable reference brackets are supplied with each foam trimmer. This system will cut a variety of substrates including standard foam board up to 1.18 inches (30mm). Oversized left and right lateral extensions and "angular cut kit" are available options as is a "Laser Designator." The "Laser Designator" generates a florescent red "cut line," designating precisely where the cutter blade will cut.

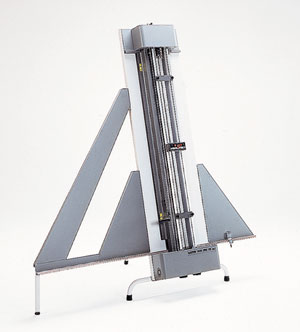

Vertical Foam Trim Plus Electric Fixing Bar, Laser Ray and Stand

Electro Foam Trim series can cut 1/2" Sintra and Gater Board, Foam Board & Corplast to 1 1/8" thick.

Electro Foam Trim Plus Vertical and Horizontal (Electric)

This electric foam trimmer is available in both vertical and horizontal configurations. Fixed blade cutting head is constructed from hardened steel; precisely aligned by dual aluminum guide rails and driven by a one quarter horsepower motor coupled with a positive chain drive. Variable speed cutting head operates at 6 inches per second on the cut. Return speed is variable dependent on the substrate being cut. Both configurations are supplied with 5, 10, 20 and 30-mm cutting heads for scoring, single pass or bi-directional cuts. Precise targeting of each cut is accomplished with the aid of a "Laser Designator" alignment system. Controls include "up" and "down" motor control and "panic stop" push buttons. Fixing bar adjusts to height of substrate, automatically stabilizing the sheet for clean, crisp cuts and eliminates pinching of substrate edges. Left and right lateral extensions as well as an adjustable reference bracket is supplied with each trimmer. The electric foam trimmer will cut a variety of substrates including rigid foam board up to 1.18 inches (30mm) or Sintra up .50 inches (13mm). Oversized left and right lateral extensions are optional.

For Prices and Ordering:
We have moved the prices to our new shopping cart shown here.

Electro Foam Trim Special (Electric)

The ultimate in automated foam trimmers. Electrically operated, fixed blade cutting head is constructed from hardened steel, precisely aligned by dual aluminum guide rails and driven by a one quarter horsepower motor coupled with a positive chain drive. Head cutting speed is variable. Depth of cut is operator selected from four preset settings and automatically adjusted according to the operator's request. Precise targeting of each cut is accomplished with the aid of a "Laser Designator" alignment system. Controls include "up" and "down" variable speed motor control, "panic stop" button and "depth of cut selector." Fixing bar adjusts to height of substrate, automatically stabilizing the sheet for clean, crisp cuts eliminating pinching of substrate edges. Left and right lateral extensions as well as an adjustable reference bracket is supplied with each foam trimmer. System will cut a variety of substrates including rigid foam board up to 1.26 inches (32mm) or Sintra up to .50 inch (13mm). Additional left and right lateral extensions are modular and available as options. This is a special order unit check with us for lead times.

For Prices and Ordering:
We have moved the prices to our new shopping cart shown here.

Important points:
When considering the purchase of a Neolt foam trimmer: Although designed to meet the needs of most foam board users, Neolt foam trimmers are not intended for every foam cutting application. Light Foam works best when foamboard is placed against the end cutting guide since there is no clamping device to hold it firmly in place. The same applies to the Foam Trim unless the optional clamping bar is purchased. For the Vertical Foam and Electric Foam the clamping bar is included as standard equipment. The head cuts only in one direction and may require some force when cutting through thick foam. And even though the cuts are clean and square, a slight burr is left on the lower card surface. Lastly, unlike rotary trimmers, the cutting blade is quite exposed and may be hazardous to children.

Application Guide

Parts Listing for all Trimmers

Shipping charges additional

Warranty Information
Terms & Conditions:
Warranty: Thirty-day, "return to depot warranty" on all parts, labor and freight on factory defects provided the customer has retained and returned the defective unit in the original packaging. Ninety-day,  "replacement parts only" on boards, motors, belts and lasers. One-year on material defects and craftsmanship. Service after the warranty period has expired: Freight in and freight out are at the customer's expense. Repairs will be preformed on a time and material basis at prevailing rates.

Revised July, 2009
Prices subject to change without notice
